Listed below are the parts that make up the roofs for Polaris GENERAL vehicles. Included are diagrams and the part numbers for spare part kits. Each diagram and parts listing is specific to that particular roof.
To order a replacement part for your roof, see your authorized Polaris Dealer. If you need a part not listed, also consult your Polaris Dealer. To determine if a roof fits your GENERAL, visit the Accessories section of the GENERAL website.

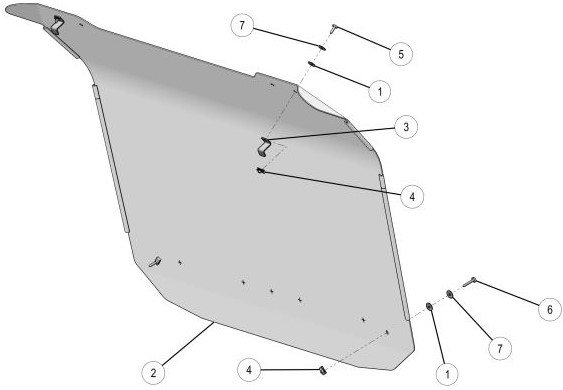

Roof - Aluminum (Part Number 2881105)
The following table lists the parts included in the roof kit, as well as their part numbers. The identification numbers correspond to the above diagram. For more information, view the installation instructions. To order a part, see your Polaris Dealer.
Item | Description | Quantity | Part Number |
1* | Washer, Rubber - 0.281 x 1.00 x 0.051 | 4 | — |
2 | Panel, Roof | 1 | 5261035 |
3 | Bracket, Roof | 2 | 5261696 |
4* | Nut Clip | 4 | 7081305 |
5* | Screw, TORX® - M6 x 1.0 x 25 | 2 | 7519650 |
6* | Screw, TORX® - M6 x 1.0 x 45 | 2 | 7519722 |
7* | Washer, Steel - 0.281 x 1.00 x 0.051 | 4 | 7556329 |
* Denotes parts available in Hardware Kit (part number 2205976). To order that kit, see your Polaris Dealer.

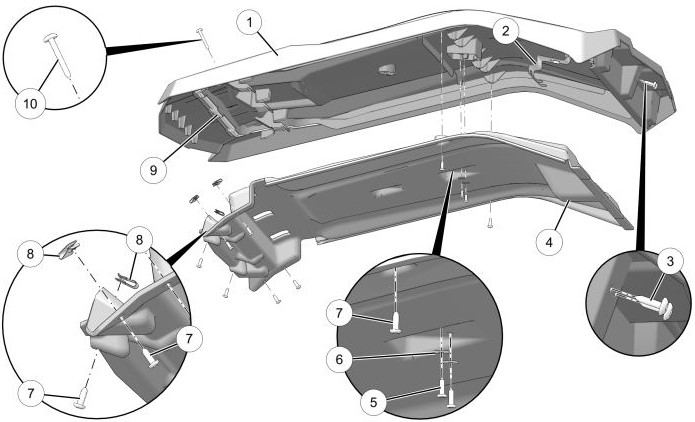

Premium Roof - Poly (Part Number 2883800) and Sport Roof - Poly (Part Number 2883780)
The following table lists the parts included in the roof kits, as well as their part numbers. Identification numbers correspond to the above diagram. The Premium Roof is pictured. The Sport Roof is similar except where noted below. For more information, view the installation instructions. To order a part, see your Polaris Dealer.
Item | Description | Quantity | Part Number |
1 | Roof Panel | 1 | — |
2* | Bracket | 1 | 5266575-458 |
3* | Screw, TORX® Truss Head - M6 x 1.0 x 25 | 2 | 7519650 |
4 | Liner, Roof (Premium Roof only) | 1 | 5814805 |
5* | Screw, TORX® Pan Head, High/Low - #10 x 5/8 (Premium Roof only) |
2 | 7518238 |
6* | Washer - 0.20 x 0.67 x 0.048 (Premium Roof only) | 2 | 7556034 |
7* | Screw, TORX® Truss Head, High/Low - #14 x 3/4 (Premium Roof only) |
8 | 7519045 |
8* | Nut, Clip (Premium Roof only) | 6 | 7547674 |
9 | Seal | 1 | 5415720 |
10* | Screw, TORX® Truss Head - M6 x 1.0 x 50 | 2 | 7519841 |
* Denotes items included in hardware kit 2207763. To order that kit, see your Polaris Dealer.

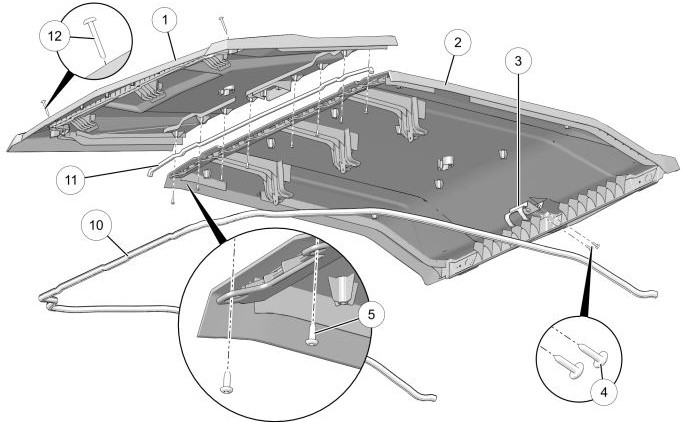

Four-Seat Premium Roof - Poly (Part Number 2883801)
Roof:
Liner:
The following table lists the parts included in the roof and liner kits, as well as their part numbers. The identification numbers correspond to the above diagrams. For more information, view the installation instructions. To order a part, see your Polaris Dealer.
Item | Description | Quantity | Part Number |
1 | Roof Panel, Front | 1 | — |
2 | Roof Panel, Rear | 1 | — |
3* | Bracket | 1 | 5266575-458 |
4* | Screw, TORX® Truss Head - M6 x 1.0 x 25 | 10 | 7519650 |
5* | Screw, TORX® Truss Head, High/Low - #14 x 3/4 | 14 | 7519045 |
6 | Liner, Roof, Rear | 1 | 5814807 |
7 | Liner, Roof, Front | 1 | 5814806 |
8* | Washer - 0.20 x 0.67 x 0.048 | 2 | 7556034 |
9* | Nut, Clip | 8 | 7547674 |
10 | Seal, Perimeter | 1 | 5522189 |
11 | Seal, Mid Joint | 1 | 5522207 |
12* | Screw, TORX® Truss Head - M6 x 1.0 x 50 | 2 | 7519841 |
13* | Screw, TORX® Pan head, High/Low - #10 x 5/8 | 2 | 7518238 |
14 | Foam Block | 8 | 5814830 |
* Denotes items included in hardware kit 2207762 (universal kit includes all roof and liner hardware).
Four-Seat Sport Roof - Poly (Part Number 2883781)
The following table lists the parts included in the roof kit, as well as their part numbers. Identification numbers correspond with the above diagram. For more information, view the installation instructions. To order a part, see your Polaris Dealer.
Item | Description | Quantity | Part Number |
1 | Roof Panel, Front | 1 | — |
2 | Roof Panel, Rear | 1 | — |
3* | Bracket | 1 | 5266575-458 |
4* | Screw, TORX® Truss Head - M6 x 1.0 x 25 | 2 | 7519650 |
5* | Screw, TORX® Truss Head, High/Low - #14 x 3/4 | 8 | 7519045 |
10 | Seal, Perimeter | 1 | 5522189 |
11 | Seal, Mid Joint | 1 | 5522207 |
12* | Screw, TORX® Truss Head - M6 x 1.0 x 50 | 2 | 7519841 |
* Denotes items included in hardware kit 2207762 (universal kit includes all roof and liner hardware).

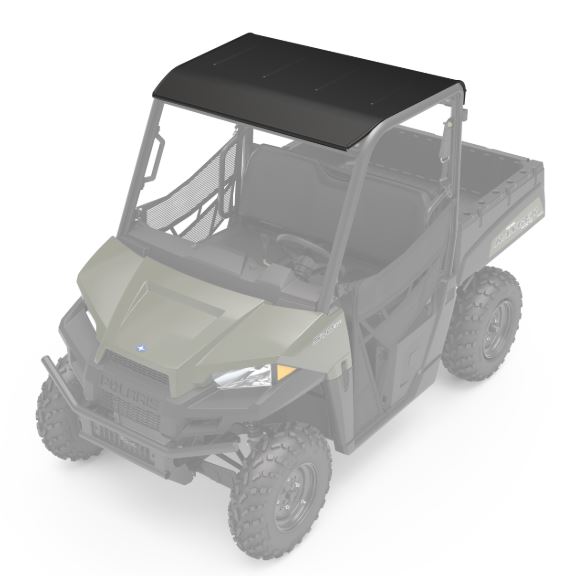

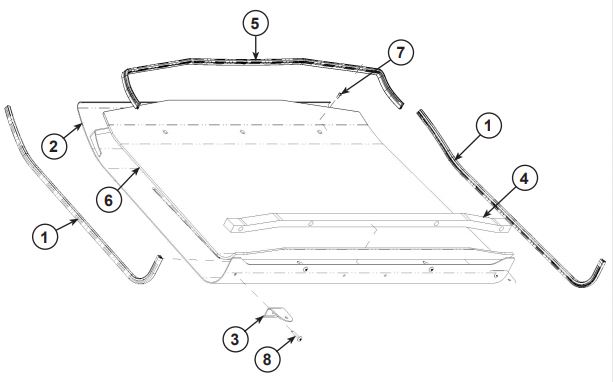

Steel Roof (Part Number 2879954)
The following table lists the parts included in the roof kit as well as their part numbers. To order a part, see your Polaris Dealer. The identification numbers correspond to the above diagram. For more information, view the installation instructions.
Item | Description | Quantity | Part Number |
1 | Side Foam Seal, Steel Roof | 2 | 5814085 |
2 | Steel Roof Weldment | 1 | 1020417 |
3 | Light Bracket Mount, Steel Roof | 2 | 5259057 |
4 | Rear Foam Seal, Steel Roof | 1 | 5814084 |
5 | Front Bulb Seal, Roof | 1 | 5814086 |
6 | Steel Roof Liner | 1 | 5814172 |
7* | Bolt - M6 x 1.0 x 15, PH/TX-Olive D | 3 | 7518656 |
8* | Screw - M6 x 1.0 x 40, TR/TX-Black | 4 | 7519001 |
* Denotes parts available in Hardware Kit (part number 2205781). To order that kit, see your Polaris Dealer.

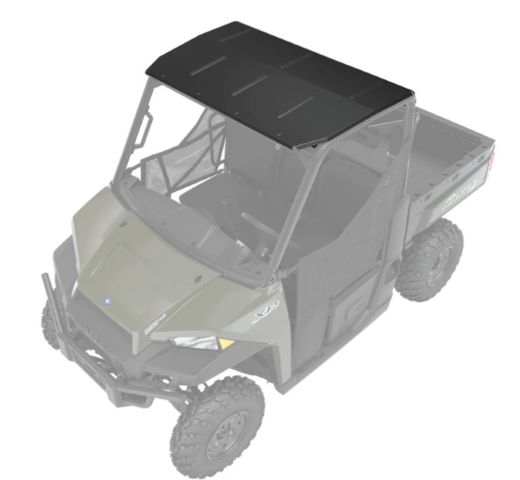

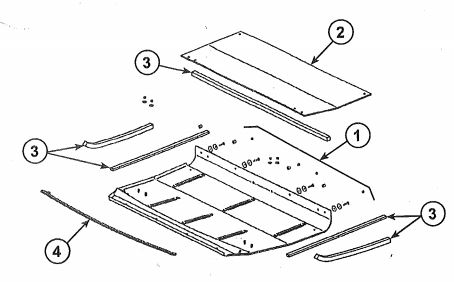

HD Roof - Steel (Part Number 2879881)
The following table lists parts included in the roof kit as well as their part numbers. The identification numbers correspond with the above diagram. For more information, view the installation instructions. To order a part, see your Polaris Dealer.
Item | Description | Quantity | Part Number |
1 | K-SVC Hardware, Roof, SCY, TTN | 1 | 2205369 |
2 | K-SVC HDLNR, Roof, SCY, TTN | 1 | 2205370 |
3 | K-SVC, Seals, Roof, SCY, TTN | 1 | 2205371 |
4 | K-SVC Bulb Seal, SCY, TTN | 1 | 2205372 |
TORX® is a registered trademark of Acument Intellectual Properties, LLC.
